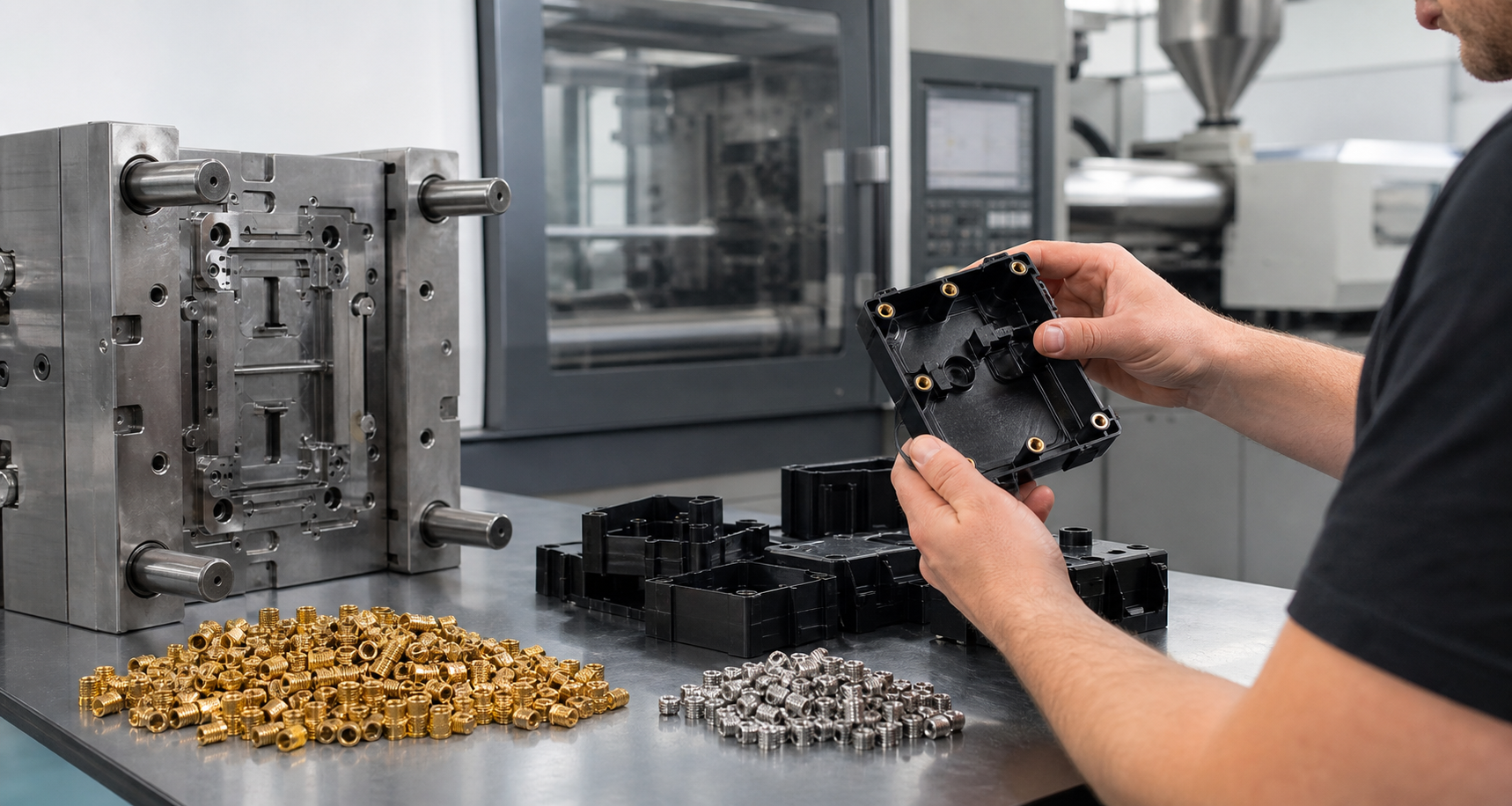

Metal insert molding is used when a plastic part needs metal threads, wear surfaces, reinforcement or electrical/structural integration without adding secondary assembly steps. Common examples include threaded bosses, electrical carriers, sensor housings, mounting points and load-bearing interfaces.
This guide explains how to source metal insert molded plastic parts, what design rules matter before tooling, and which supplier questions reduce the risk of loose inserts, cracked bosses and unstable production yield.
Metal Insert Molding at a Glance
| Decision Area | Common Choices | Buyer Check |
|---|---|---|
| Insert type | Brass threaded inserts, stainless bushings, pins, stamped contacts | Confirm pull-out, torque and corrosion requirements |
| Plastic materials | PA, PBT, PC, ABS, PPS, PEEK and filled engineering plastics | Match resin shrinkage and temperature to insert geometry |
| Tooling method | Manual loading, robotic placement, fixture-assisted positioning | Review cycle time and insert location stability |
| Main risks | Insert shift, resin flash, boss cracking, weak retention | Ask how the supplier validates retention and alignment |
| RFQ inputs | Insert drawing, plastic part CAD, torque or pull-out need, quantity | Share both the plastic and metal requirements |
When Insert Molding Makes Sense
Insert molding is usually preferred when the program needs strong fastening points, reduced assembly time or better positional accuracy than a secondary heat-staking or press-in step can deliver. It is especially useful when the plastic part will be opened and reassembled repeatedly, or when threaded engagement must remain stable in production.
If the part only needs light-duty threads in a noncritical area, a simpler post-molding insert process may be enough. The correct decision depends on load, quantity, assembly method and tolerance stack-up.

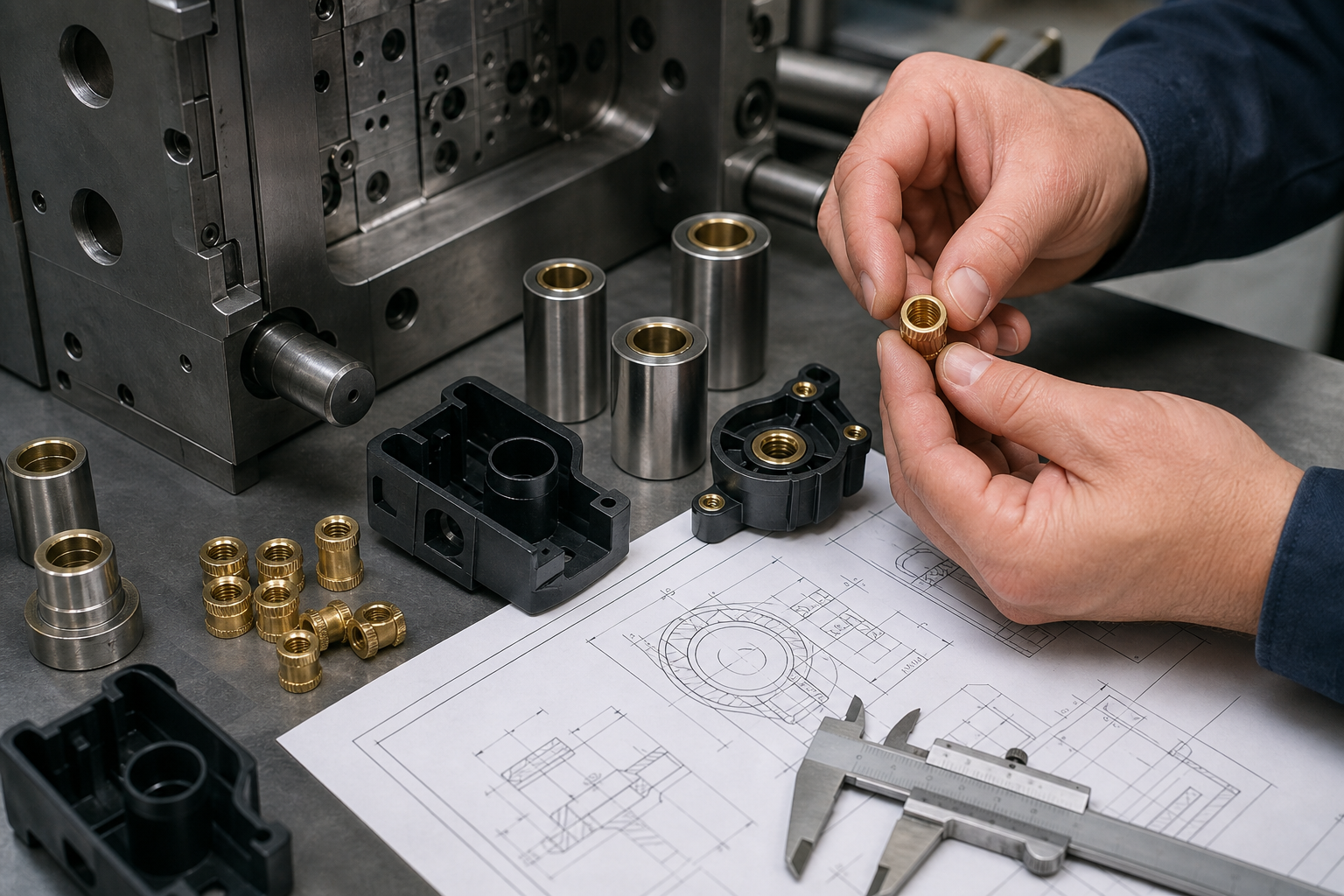

Insert Types, Materials and Tooling Review
Brass inserts are common because they machine well and offer good thread performance. Stainless inserts may be chosen for corrosion or strength requirements. The surrounding plastic must be reviewed together with the insert shape, knurl geometry and molding temperature window.
- Confirm whether the insert will see torque, pull-out, vibration or thermal cycling.
- Review wall thickness around the insert before cutting steel.
- Check whether preheating or special loading fixtures are needed.
- Ask how insert position is controlled during molding.
Design Rules Before Tooling
- Avoid undersized bosses that leave no room for resin support around the insert.
- Keep inserts away from sharp stress risers and thin wall transitions.
- Share mating screw size, target torque and clamp load with the supplier.
- Review gate location so resin fills around the insert without voids or weld-line weakness.
- Confirm draft, ejection and cooling around heavy metal masses in the mold.
Common Problems and How to Reduce Them
| Problem | Mögliche Ursache | Reduction Method |
|---|---|---|
| Insert shift | Poor loading control or unstable fixture support | Use reliable placement tooling and validate position early |
| Boss cracking | Insufficient resin support or wrong torque expectation | Increase support geometry and confirm assembly load |
| Weak retention | Wrong insert geometry or process window | Define pull-out requirement and test the actual molded part |
| Long cycle time | Manual insert loading with high labor content | Review automation or part-family strategy before launch |
Supplier Checklist for RFQ
| Ask For | Warum das wichtig ist |
|---|---|
| Insert and plastic drawings together | Tooling cannot be reviewed correctly from one side only |
| Retention requirement | Defines whether pull-out or torque testing is needed |
| Assembly method | Confirms screw engagement and service condition |
| Annual volume | Guides fixture, automation and cycle-time decisions |
| First article and validation plan | Reduces launch risk before mass production |
Why Choose Nylon Plastic
Nylon Plastic supports engineering plastic part development with DFM review, insert molding planning, tooling discussion and broader manufacturing comparison when a part may also be viable through machining or secondary assembly. That helps buyers avoid locking into the wrong integration method too early.
Weiterführende Lektüre
- Insert molding complete guide
- Threaded inserts for plastic parts
- Core and cavity injection molding design
Häufig gestellte Fragen
What is metal insert molding used for?
It is used to integrate metal threads, bushings, pins or contacts directly into a molded plastic part so the part can handle fastening, wear or structural load more reliably.
Are brass inserts better than stainless inserts?
Brass is common for threaded retention and processing ease. Stainless may be better when corrosion resistance or specific mechanical requirements are more important.
What should I send for an insert molding quote?
Send the plastic CAD model, insert drawing or sample, quantity, screw specification and any pull-out or torque requirement.

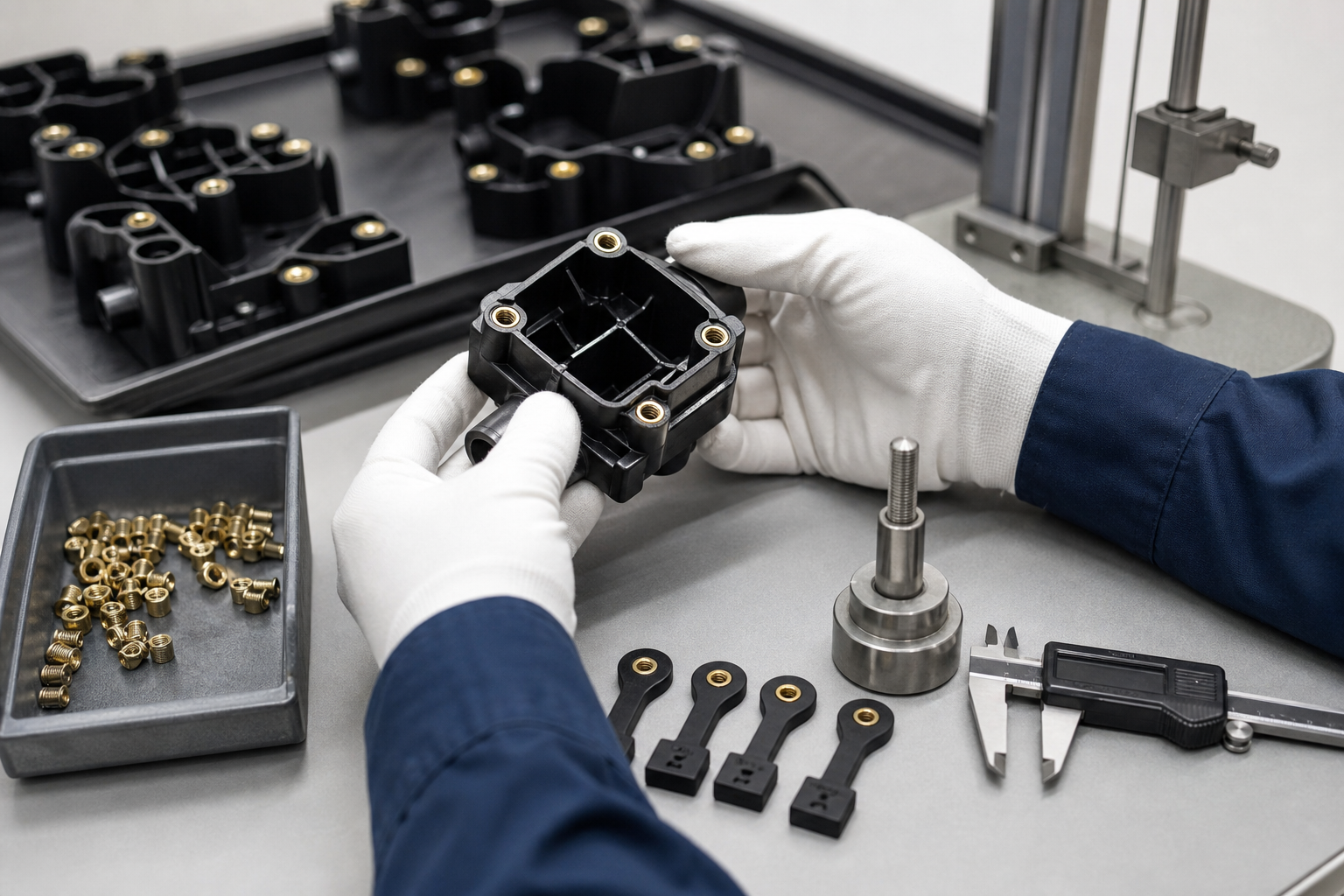

How do suppliers test insert retention?
Typical checks include pull-out testing, torque testing, dimensional inspection and first article validation against the part drawing and assembly method.
